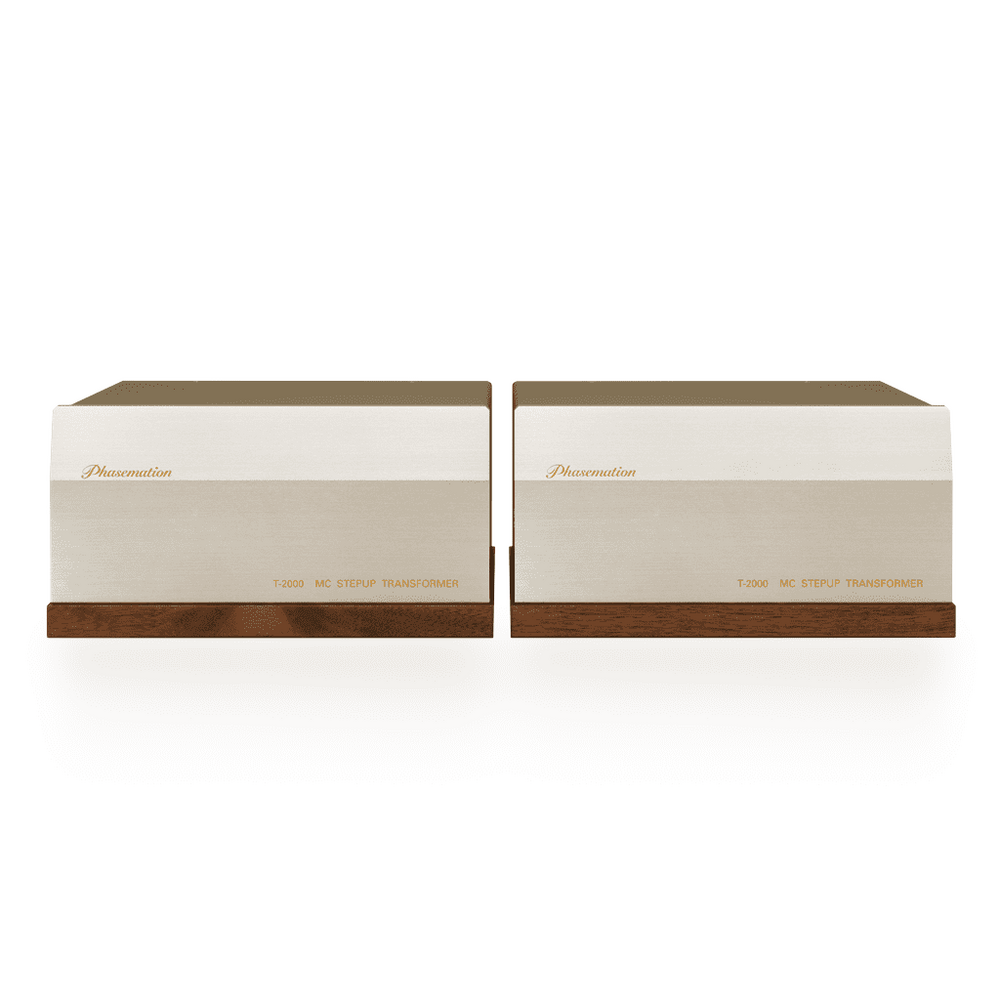

Phasemation T-2000

Повышающий трансформатор моноблочной структуры для головок МС типа.

Эффективное использование выходного сопротивления головки звукоснимателя позволяет серьёзно поднять качество звуковоспроизведения.

Вслед за повышающим трансформатором Phasemation Т-500 компания Phase Tech выпустила исключительно мощный повышающий трансформатор Phasemation T-2000. Новая структура катушки и двублочный дизайн устройства позволили полностью избавиться от помех, улучшить динамику и добиться большей панорамности звучания.

Основные особенности модели Phasemation T-2000:

• Балансное подключение
• Применение в катушке сверхтонкого супермаллоя и большого сердечника
• Новая высокоэффективная структура обмотки, производимая вручную прочной медной проволокой, позволила улучшить частотную и фазовую характеристики в широком диапазоне.
• Полная защита от внешних и внутренних шумов и вибраций.  Основание шасси представляет собой сплошной стальной лист, покрытый медью. Верхняя панель корпуса с индукционным шумозащитным экраном. Магнитное экранирование, а также применение в конструкции специальной резины, предотвращающей распространение вибраций. Как и в контрольном усилителе CA-1000, передняя панель выполнена из  алюминия толщиной 20 мм. Установочная база из дерева.
• Высококачественные детали. В качестве ножек используются  виброизоляторы Taoc из углеродистого чугуна, помогающие улучшить разрешение. Входные терминалы с родиевым покрытием.

A balanced receiving of the cartridge output has been acknowledged by many people who seek high sound quality. The T-500 which was released in 2014 was made possible to have a balanced receiving and has a high reputation but there was still more room for improvements due to the results of continued research. We sought for even more sound quality and overwhelming improvements of liveliness and panoramic stage and developed the greatest step-up transformer which we can think of. The coil winding structure was reexamined and pursued a high sound quality and in addition, we succeeded to absolutely rid the left/right sound quality interference by structuring a monaural unit box.
We will release Phasemation's entire unit, the high sound quality MC step-up transformer T-2000.

Main feature

Balanced Transmission Supported Input Portion

When generating power through a cartridge coil, a balance operation is conducted essentially. Transmitting this signal with an unbalanced connection results in not only the merit of balanced type is damaged or lost, but also external noises directly affects sound quality.
The basis of wiring at the time of connecting by using a balanced phono cable is shown in Fig. 1. The signal is transmitted from the cartridge coil to the transformer coil through the push-pull balancing circuit and the shield earth covers them. Therefore, the negative effect caused by external noises can be blocked. In addition, the full balanced connection (No.2 pin hot) is structured for the cartridge side by connecting the center of primary coil of transformer to the minus point (signal GND) of the secondary coil.

A general structure of connecting a step-up transformer for MC cartridge by using of an unbalanced phono cable is shown in Fig. 2. At the unbalanced connection composed of the signal wire and external shield, the shield side is exposed to the external noises. Therefore, it results in not only to be easily effected by the noises, but the signal wire is also invaded by the negative effects.

Newly developed high performance core materials are adopted.

0.2mm thick permalloy materials which were used previously were reexamined and developed the new "extremely thin super malloy core material." In combination with the large core shape, it reached to have a superior characteristic of very low frequency linearity and high efficiency boosts (low loss) which brings about a detailed atmospheric expression.

The adoption of the best coil winding specifications

The transformer coil wiring specifications were reexamined and adopted the best fitting value designing specifications taking into consideration the matching of the transformers and impedance values of the cartridges that are in use. In combination with the new coil winding structure, this brings about a transformer of high resolution and wide ranging of sounds. In addition, due to the adoption of high pure copper wire onto the secondary coil winding, it contributes to have a full sound having a better longevity throughout all ranges.
Plus, we indulged to have it be hand made in order to reach the best sound quality. Due to this, it brought about a superior frequency response and phase characteristic to a wide range and decreased the phase distortion within the hearing range and actualized an even clearer static acoustic image.

External induction hums and unnecessary vibration removed

To handle the external induction hums, the chassis base that is a solid steel sheet plated with copper and the case cover with an induction hum shield are used. In addition, it is a double layer structure due to the magnetic shield material which is placed near the transformer. The rising transformer is made of high damping rubber and floats from the main unit and prevents the external vibration from spreading.
As with the control amp CA-1000, a 20mm thick slant aluminum panel is used for the front panel. Below the unit box, a wood base is added and by mixing it with other materials, the unnecessary vibration is effectively removed and brings about a playing sound with a good S/N ratio.

High Quality Parts Used

Rhodium plated terminals of FURUTECH products are known for high quality and high sound quality are used for the I/O input terminals.
In addition, TA0C high carbon cast iron insulators are adopted for the feet and contributes to the improvement of the sound resolution.

*Caution: The XLR or RCA, only one can be used for the input. If two are used at the same time, it can be the cause for noises to generate.
